2016-05-19 EgyptAir Airbus A320 crashed in Mediterranean Sea

Narrative

Whilst flying en-route over Mediterranean Sea the flight disappeared from radar and plunged into the ocean. The wreckage was reportedly found in the seabed on 2016-06-15.

UPDATED 2016-06-30

Egypt Air Flight MS804 from Paris-Charles de Gaulle Airport, France to Cairo, Egyt was flying at 37.000 feet (FL 370) along upper air route UN132 to KUMBI fixpoint, when its transponder signal suddenly vanished at a position approximately 280 km (175 nm) off the egyptian coast.

No distress signal from the flight was picked up by any air traffic control installation.

All attempts by air traffic control (ATC ) to establish contact with the flight subsequently failed. The A320 never showed up at any available airport nor did it land at Cairo Airport, where its landing should have taken place at 03:10L.

The disappearance took place right in the moment of hand-over from Greece controlled airspace (Athens FIR) to egyptian controlled airspace (Cairo FIR).

An multinational search-and-rescue operation is underway. A number of cargo vessels joined to search for survivors or floating debris in the area. [Live-Marinetraffic]

All 66 on board are believed to have died. Among the crew, there were 3 security personnel on board.

Nationalities:
15 French | 30 Egyptian | 1 British | 1 Belgium | 2 Iraqis | 1 Kuwaiti | 1 Saudi | 1 Sudanese | 1 Chadian | 1 Portuguese | 1 Algerian | 1 Canadian

MS 804 was the 5th flight of the day for aircraft in question. The 24h destination schedule was Eritrea – Cairo – Tunis – Cairo – Paris – Cairo (MS804).

EgyptAir released some crew information:
The pilot-in-command had logged a total of 6.275 flying hours 2.101 of them in the Airbus A320 series.
The co-pilot had logged 2.766 hours of total flying experience.

At the time it was dark but the weather was calm and skies were clear without any bad weather or turbulence warning.

Greek Military sources claimed to have tracked the final moments of MS 804. According to their statements the Airbus A320 made a sharp turn to the left of about 90 degrees before it described a full circle to the right. MS 804 then lost altitude very rapidly until all radar returns went blank at an altitude of about 10.000 ft.

By 2016-05-24 this statement was contradicted by Egypt officials who denying the A320 made any heading changes in the final minute of flight.

At 15:00 floating debris was spotted in the presumptive crash area however there is no confirmation that any of it can be in fact attributed to flight MS 804.

On 2016-06-01 the Egyptian Naval Forces reported that French navy vessel „Laplace“ has detected an underwater signal similar to that of the black box devices of MS 804. However there were no reports about the exact location of the signal.

2016-05-19_SU-GCC_A320_MS@MediterraneanSea_Vessel_Laplace
© Ministry of Defense, France

2016-06-16/-17 the crew of research vessel „John Lethbridge“ was able to locate and retrieve the cockpit voice recorder /CVR) and the flight data recorder (FDR) from the main wreckage. Both devices were examined and sent to Cairo for further analysis.

2016-05-19_SU-GCC_A320_MS@MediterraneanSea_Vessel_J_Lethbridge
© JJ Fernandez | MarineTraffic.com

2016-05-19_SU-GCC_A320_MS@MediterraneanSea_CVR+FDR
© HO | AFP | TheGuardian

2016-06-24 egyptian investigators are struggling to extract any data from the Black Box devices because their harddrives were found in damaged conditions.  Finally both recorders were sent to BEA in France were better equipment is available. French experts sucessfully repaired the FDR and CVR. Both recorders were sent back to Cairo for further analysis.

2016-06-29 Data evaluation of the digital flight data recorder (FDR) revealed the presence of thick smoke in a lavatory and in the avionics bay below the cockpit. A number of smoke sensors have triggered while flying en-route at 37000 ft. There were also signs of sooting on some parts of the recovered wreckage, egyptian officials said. Egyptain investigator continue their efforts to collect all available information from the recording devices as well as from the wreckage and human remains.
-> Egypt CAA Media Statement (9): LINK (arab

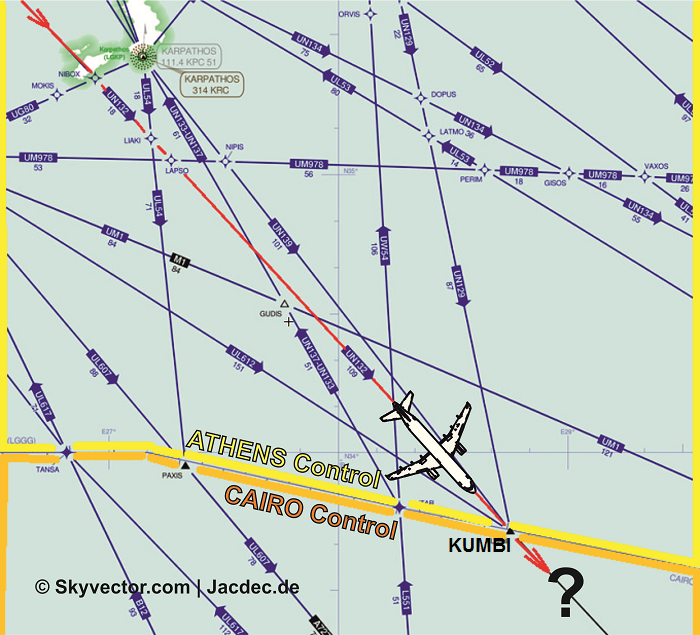

Presumed Route of MS 8042016-05-19_SU-GCC_A320_MS@MediterraneanSea_SKYVECTOR1
© Skyvector.com

2016-05-23 Egyptian Ministry of Civil Aviation objected media claims that flight MS 804 transmitted any distress messages before its disappearance at 02:29L.

Egypt CAA denied any reports the aircraft made any radio contact with Egyptian Air Traffic Control (ATC) after handed over from greek ATC near the KUMBI waypoint.

Egypt CAA Media Statement (8): LINK (arab)

Ocean Depth Chart of Eastern Mediterranean Sea
2016-05-19_SU-GCC_A320_MS@MediterraneanSea_NOAA1

Search area of MS 804
2016-05-19_SU-GCC_A320_MS@MediterraneanSea_MAP2


On May 20th a number of automated ACARS (Aircraft Communications Addressing and Reporting System) messages were picked up by ground stations:

Time UTC Message
00:26Z
00:26Z
00:26Z
00:27Z
00:28Z
00:29Z
00:29Z
3044 ANTI ICE R WINDOW
561200 R SLIDING WINDOW SENSOR
2600 SMOKE LAVATORY SMOKE
2600 AVIONICS SMOKE
561100 R FIXED WINDOW SENSOR
2200 AUTO FLT FCU 2 FAULT
2700 F/CTL SEC 3 FAULT
end of data
Some messages indicate the presence of smoke in the foreward lavatory and the avionics compartment underneath the cockpit. French investigating authority BEA confirmed the existance of the messages but did not draw any conclusions.

The original ACRAS document from an undisclosed source:
2016-05-19_SU-GCC_A320_MS@MediterraneanSea_ACARS1sm



2016-05-21  first images of recovered debris
(source: egyptian navy)

2016-05-19_SU-GCC_A320_MS@MediterraneanSea_DEBRIS1 2016-05-19_SU-GCC_A320_MS@MediterraneanSea_DEBRIS2 2016-05-19_SU-GCC_A320_MS@MediterraneanSea_DEBRIS3 2016-05-19_SU-GCC_A320_MS@MediterraneanSea_DEBRIS4


2016-05-19_SU-GCC_A320_MS@MediterraneanSea_COVER

EgyptAir Safety Analysis

2016-05-19_SU-GCC_A320_MS@MediterraneanSea_Database
© Jacdec Database Services

OCCURENCE DATASET
Date: 2016-05-19 Time: 02:30
Location: over eastern Mediterranean Sea
Country: International
Flight phase: ENR – Cruise, Descent, Holding
Damage to a/c: hull loss

Flight
Flight no.: MS 804
From: LFPO/ORY: Paris-Orly Intl Airport To: HECA/CAI: Cairo
Type: Passenger
Operator: EgyptAir

Any additions or corrections ?
Please e-mail us

2016-05-19_SU-GCC_A320_MS@MediterraneanSea_WORLDMAP_sm

Aircraft Involved

2016-05-19_SU-GCC_A320_MS@MediterraneanSea_ACFT
© A Gicard | Planefinder.net

Aircraft
Type: Airbus A320
Registration: SU-GCC
Age a/c: 12,8 years
Constr. No.: 20884

Occupants & Casualties

Airline Statement

EGYPTAir_PressLogo

Crew Pax Other Total
Occupants 10 56 0 66
Fatalities 10 56 0 66
Injuries 0 0 0 0

JACDEC 25-year Statistics :

  • 53rd safety occurence for the operator
  • 491st safety occurence of type (A320)
  • 3rd safety occurence over Mediterranean
  • 1st safety occurence for aircraft in question
